Brackets

DC Distributing offers a variety of brackets to meet your needs.

Workstation Brackets

1/8″ Steel Exceeds 1,000 lbs. Load Limit 1 ½” Forms with multiple ¼” mounting holes

Packaged in equal quantities of lefts and rights when ordered in full box quantities only.

Standard textured powder coated finishes: Black, White, Grey, Almond, and Primered Available in:

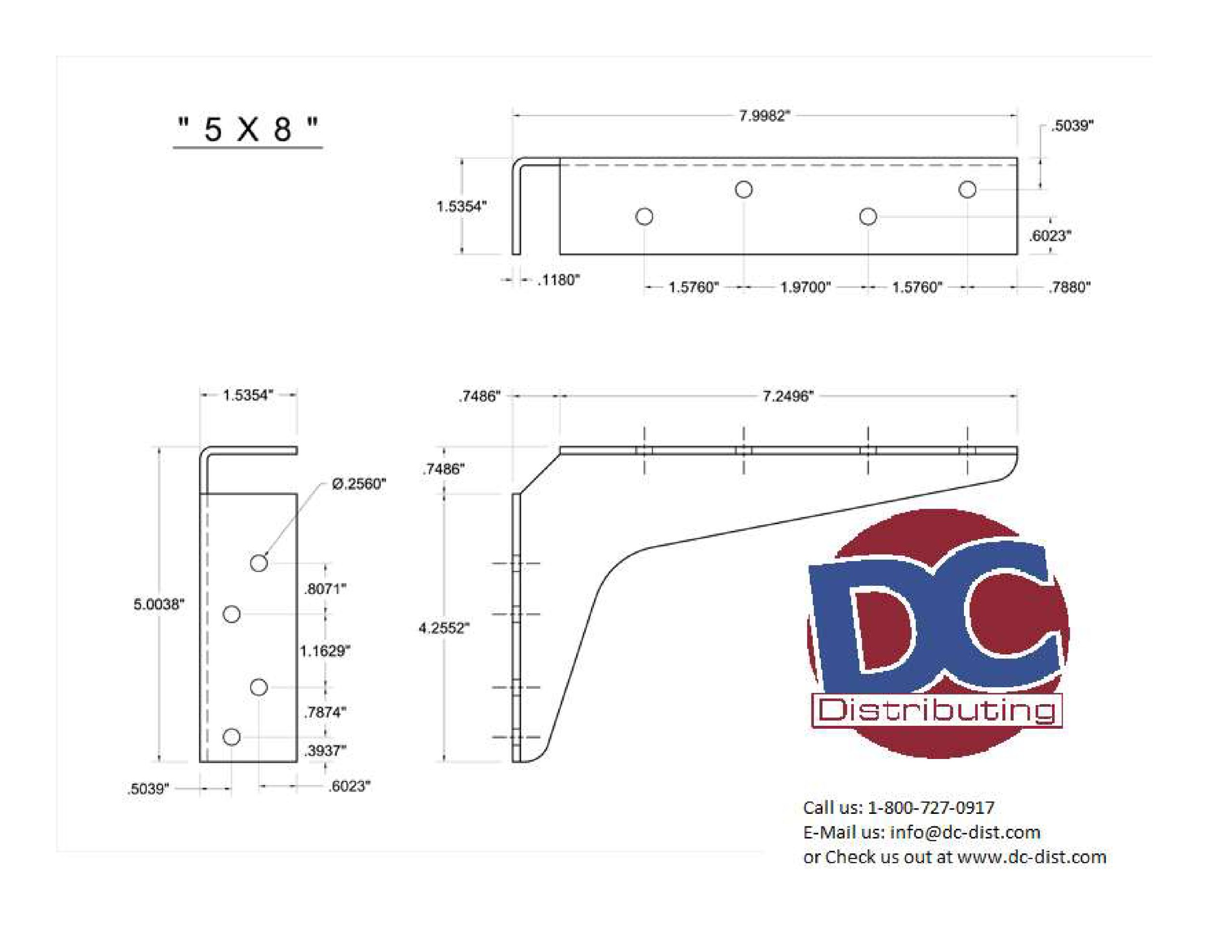

5″ X 8″
10 brackets/box		 8″ X 12″
10 brackets/box		 12″ X 12″
6 brackets/box		 12″ X 18″
6 brackets/box
15″ X 15″
6 brackets/box		 15″ X 21″
6 brackets/box		 18″ X 18″
6 brackets/box		 18″ X 24″
6 brackets/box

21″ X 21″
6 brackets/box

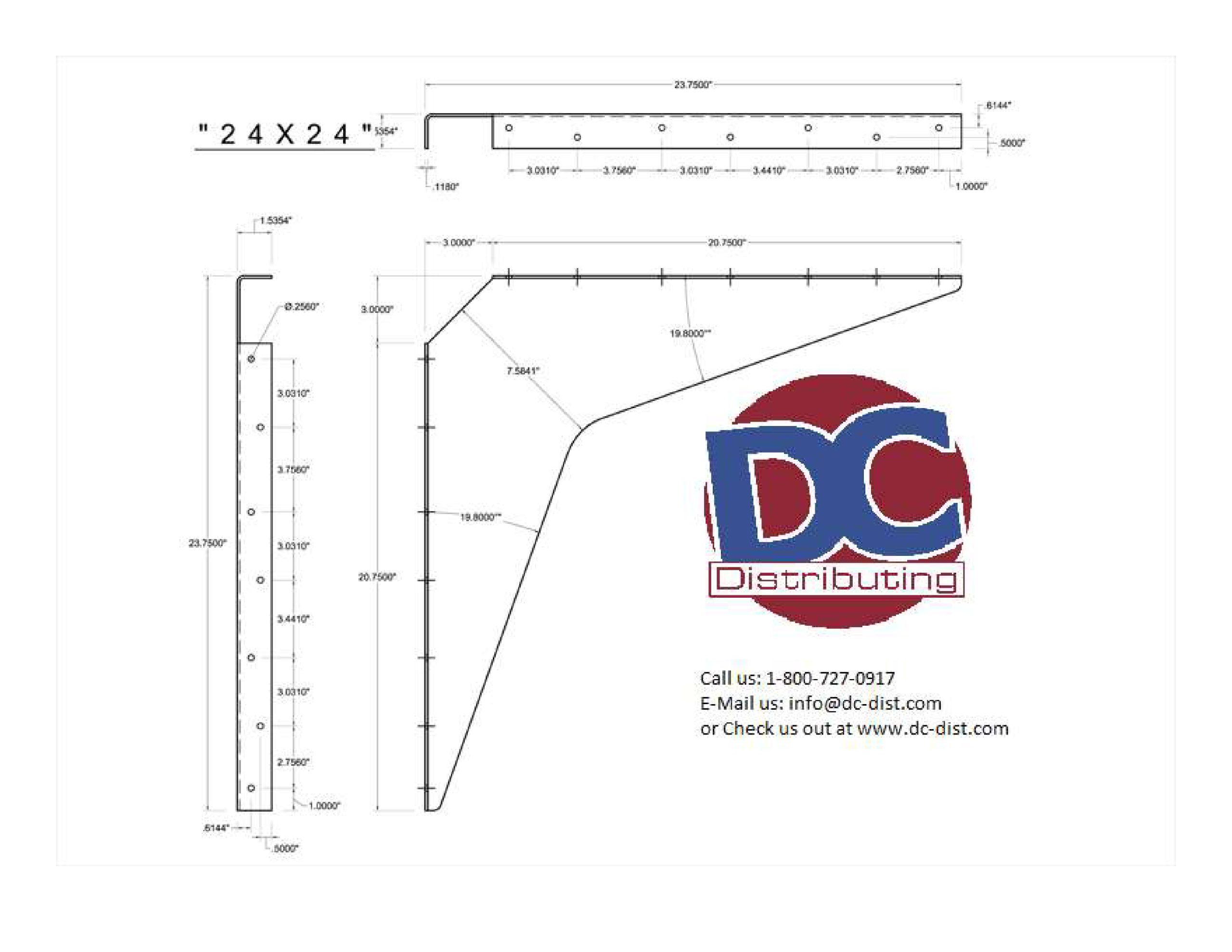

 24″ X 24″

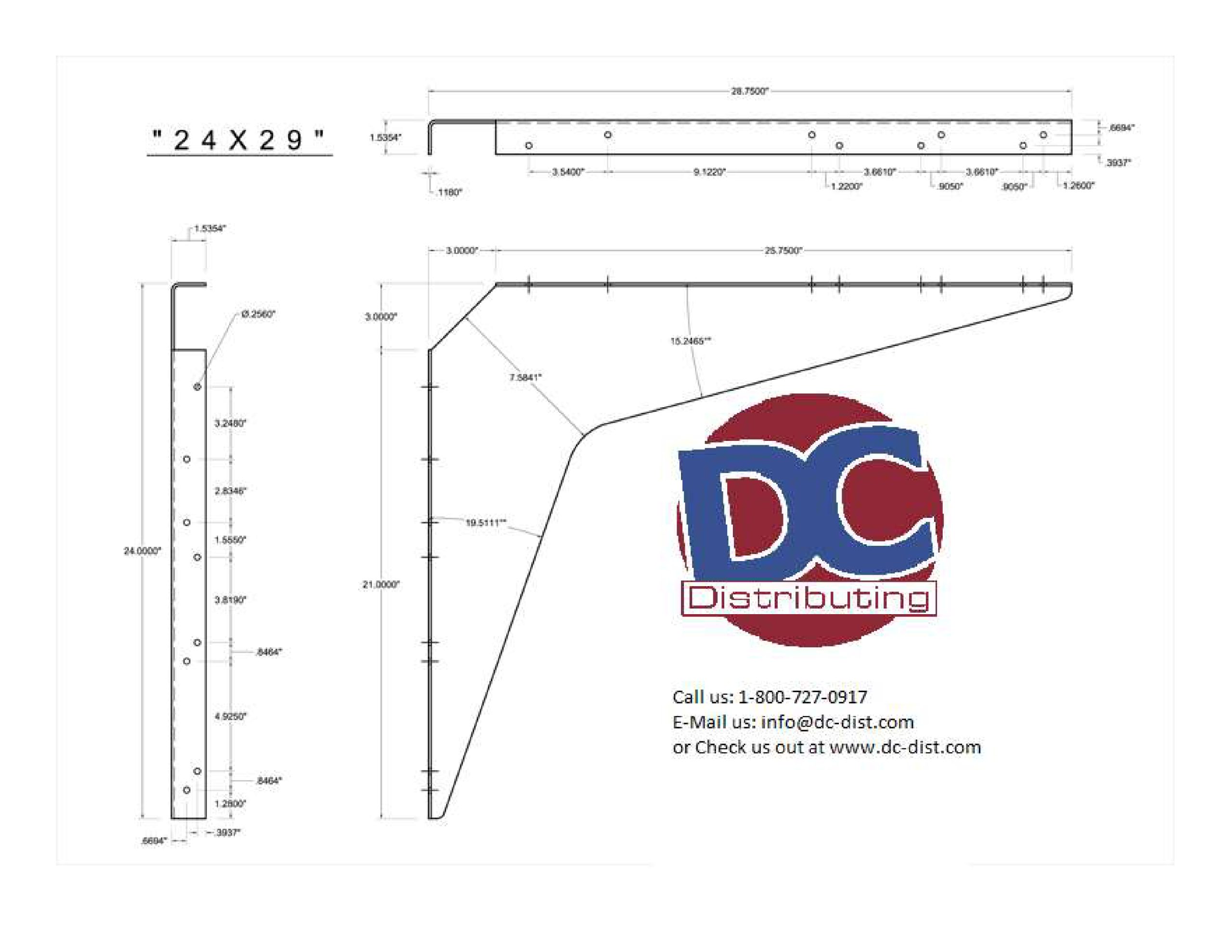

6 brackets/box		 24″ X 29″
4 brackets/box

Click a size to see schematics.

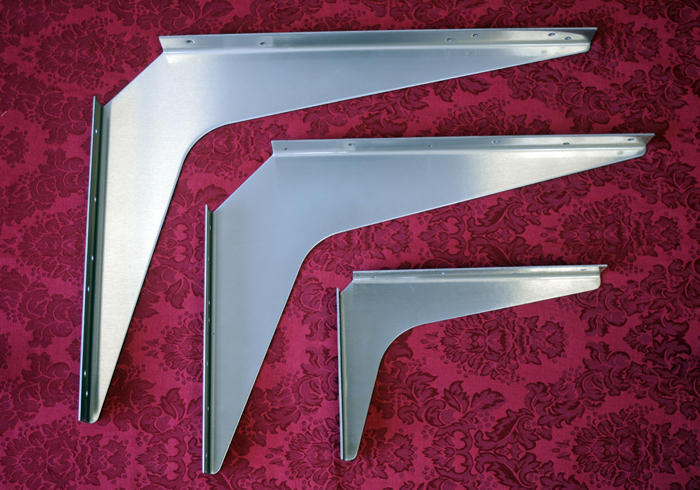

Stainless Steel Brackets

Stainless steel brackets

Sizes available:

8″ x 12″ 12″ x 18″ 15″ x 21″
18″ x 18″ 18″ x 24″

Click a size to see schematics.

Please note: These brackets must be purchased in pairs.

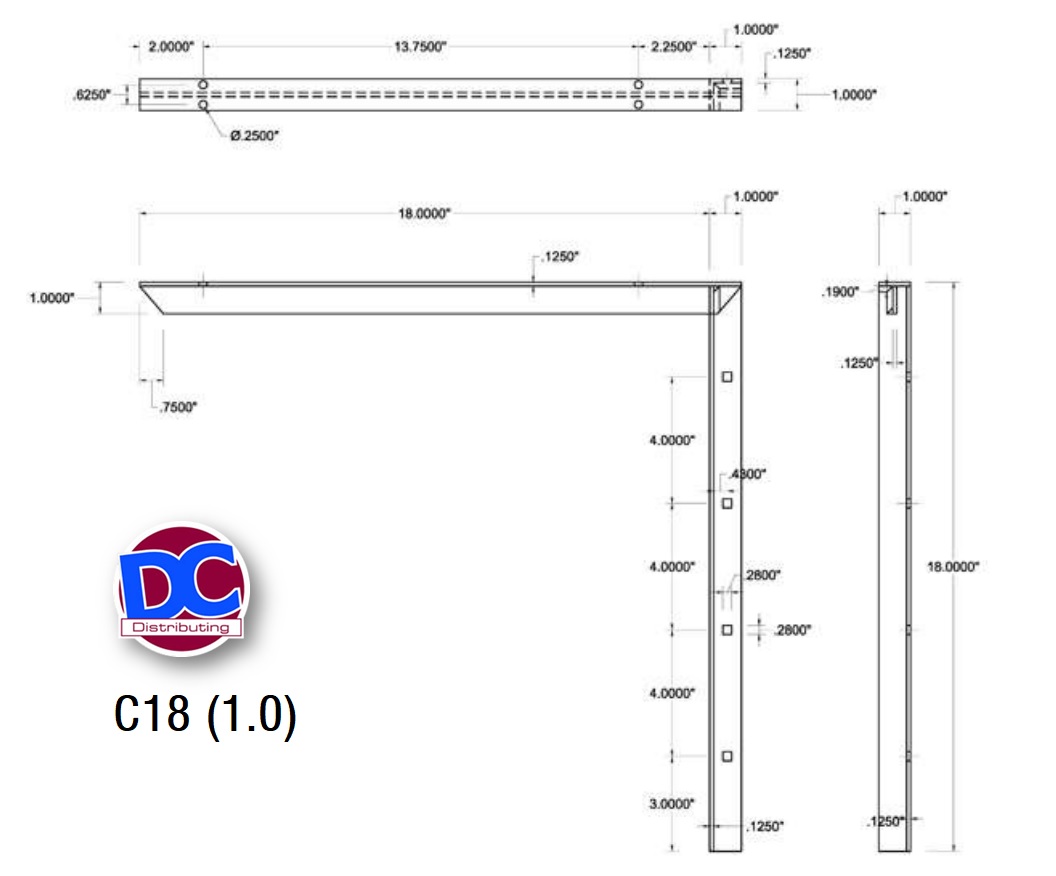

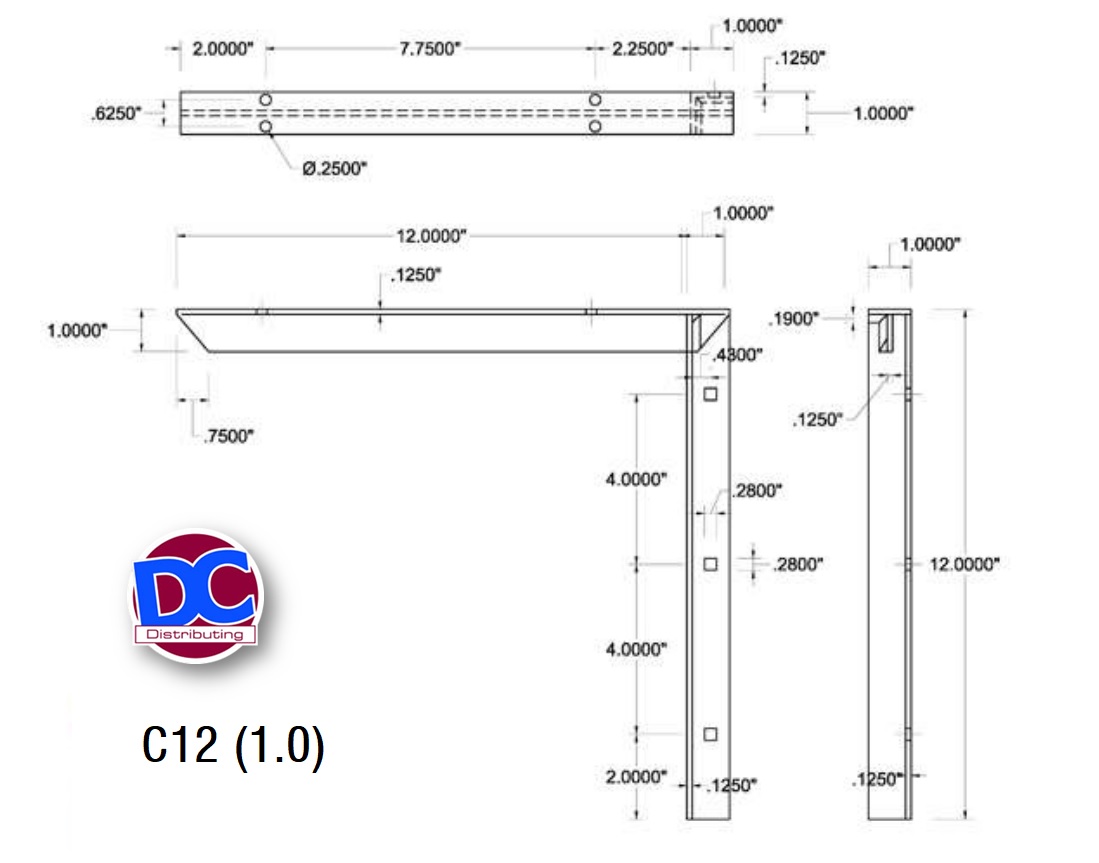

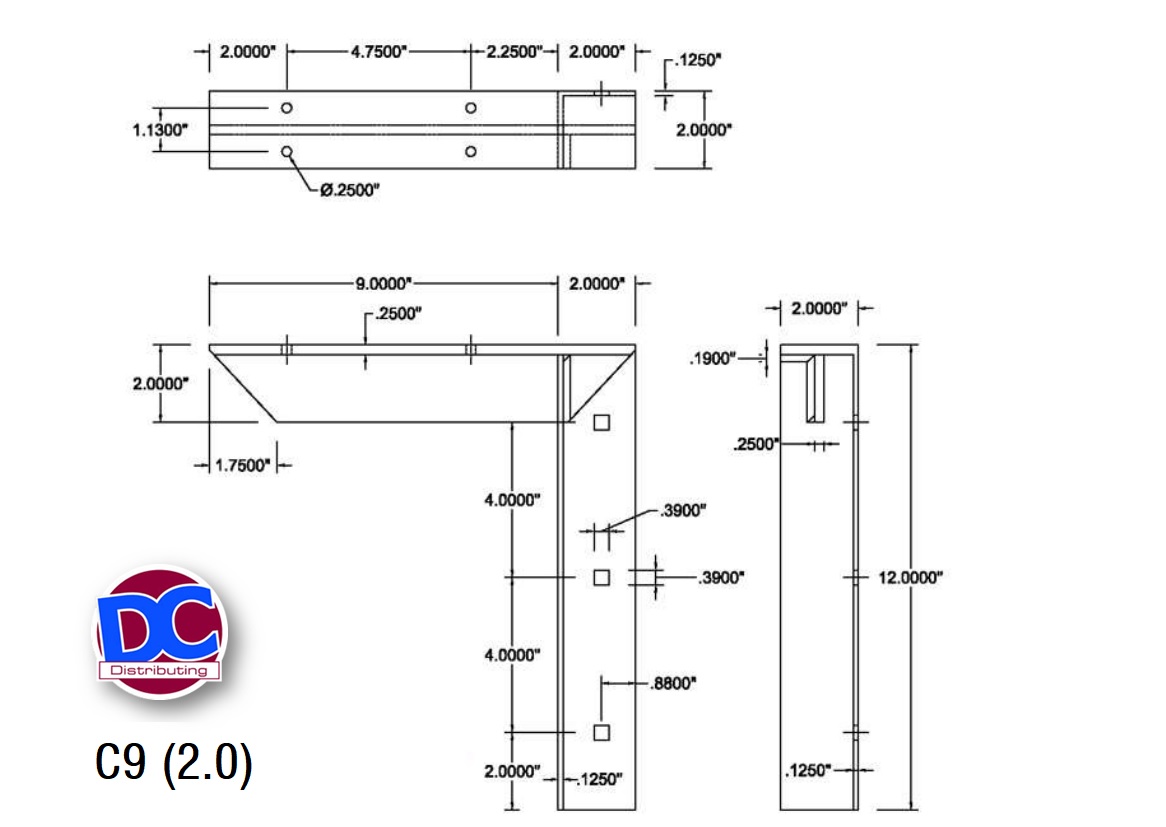

Concealed Brackets

Finishes available in: Black, White and Almond
2.0 Sizes available:

9″ 12″ 15″
18″ 21″ 24″

1.0 Sizes available:

9″ (Black and White only) 12″ (Black and White only) 18″ (Black and White only)

Click a size to see schematics.
Please note: These brackets must be purchased in pairs.

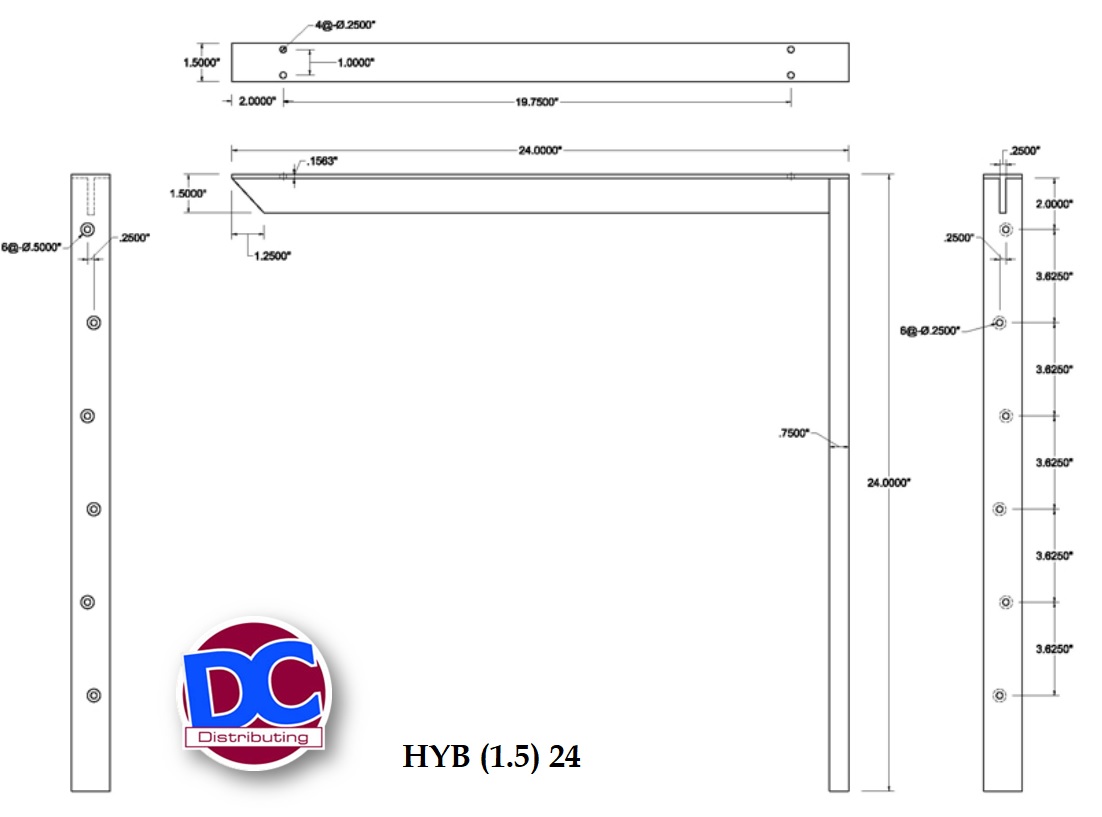

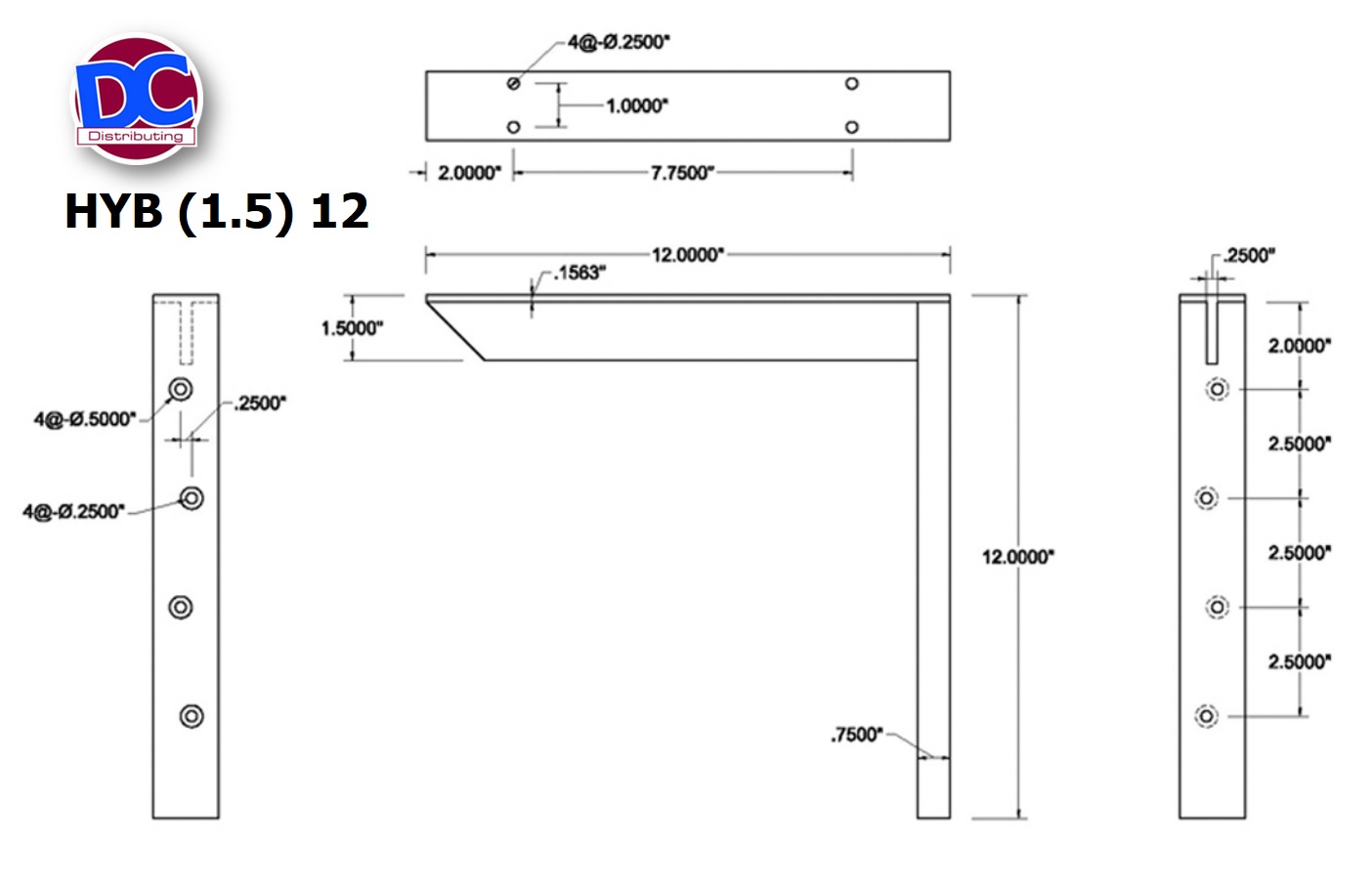

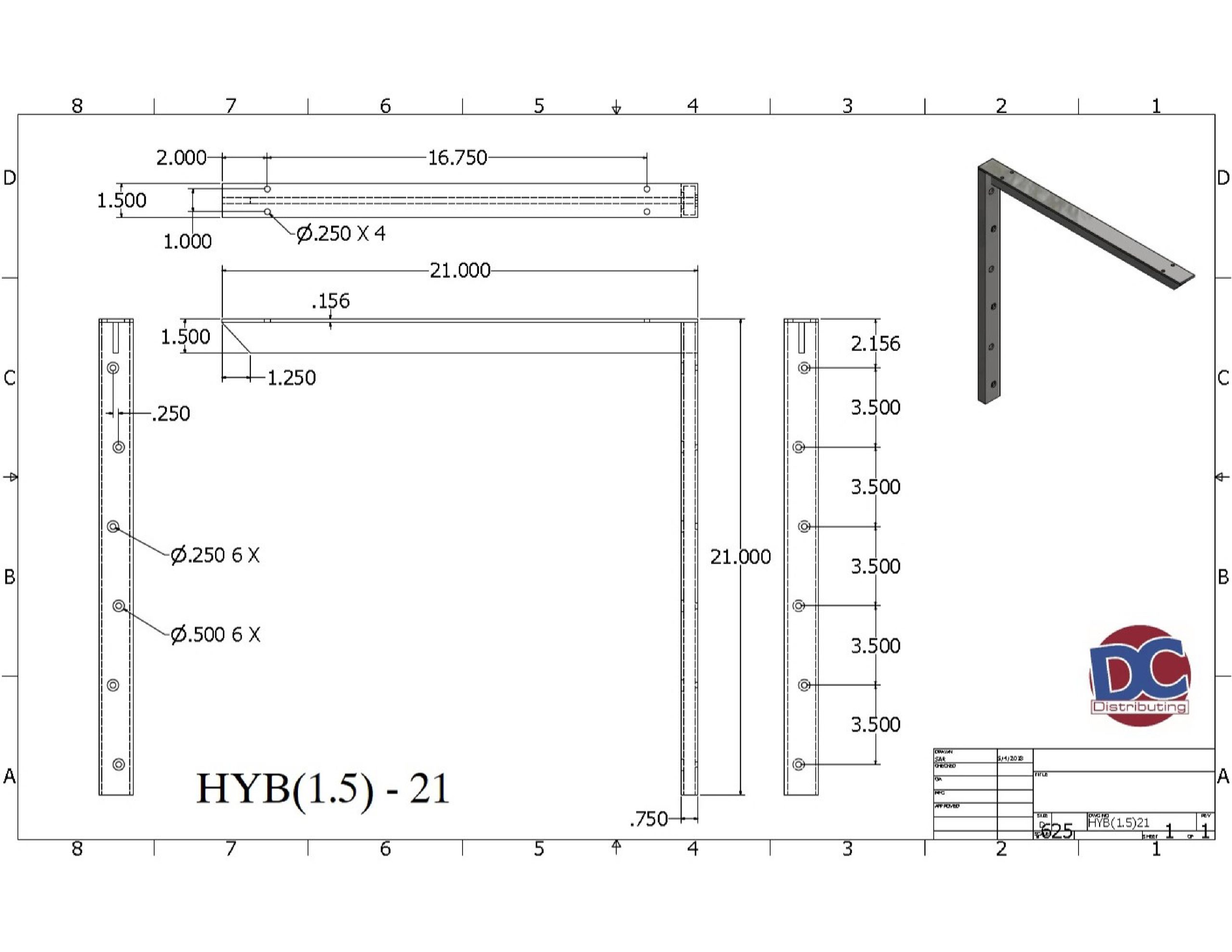

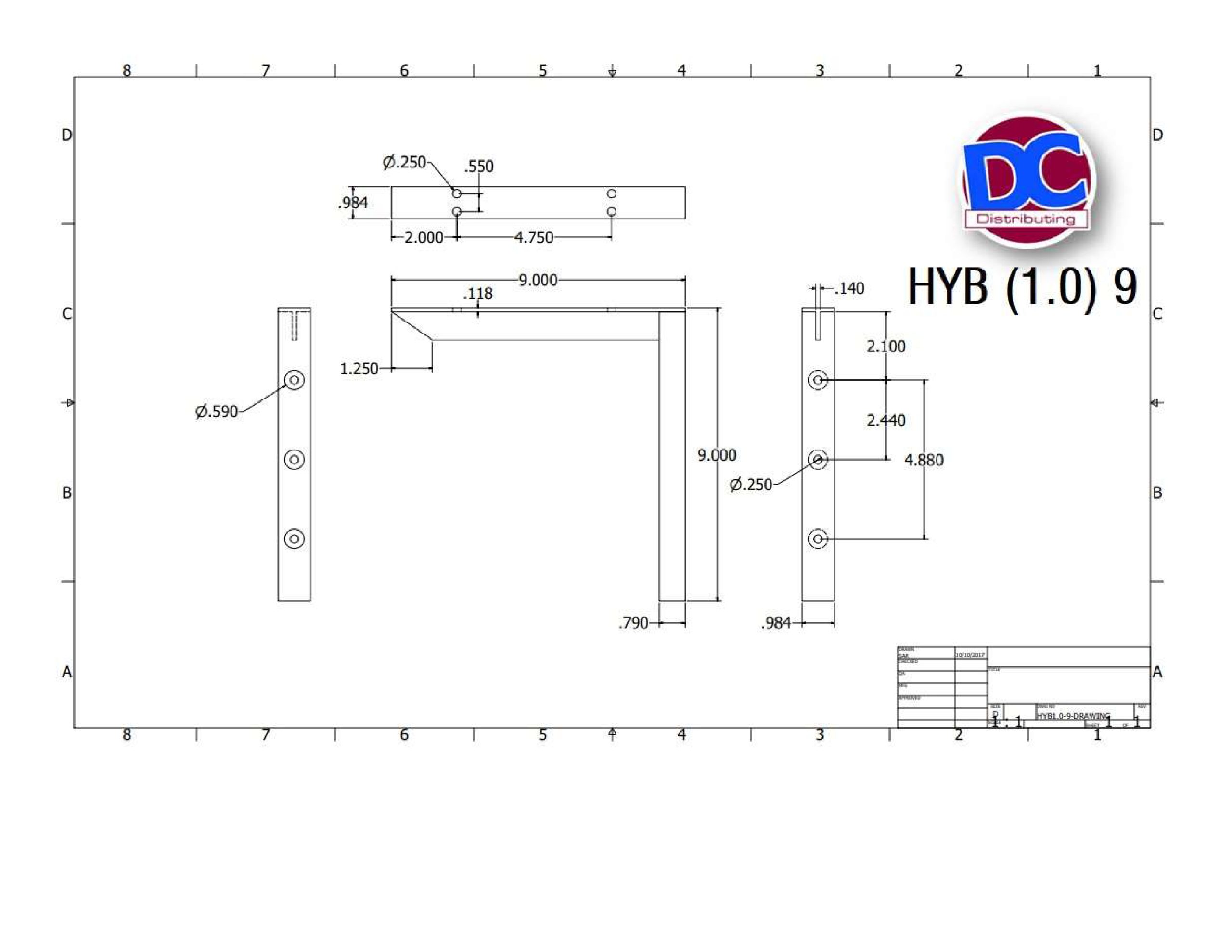

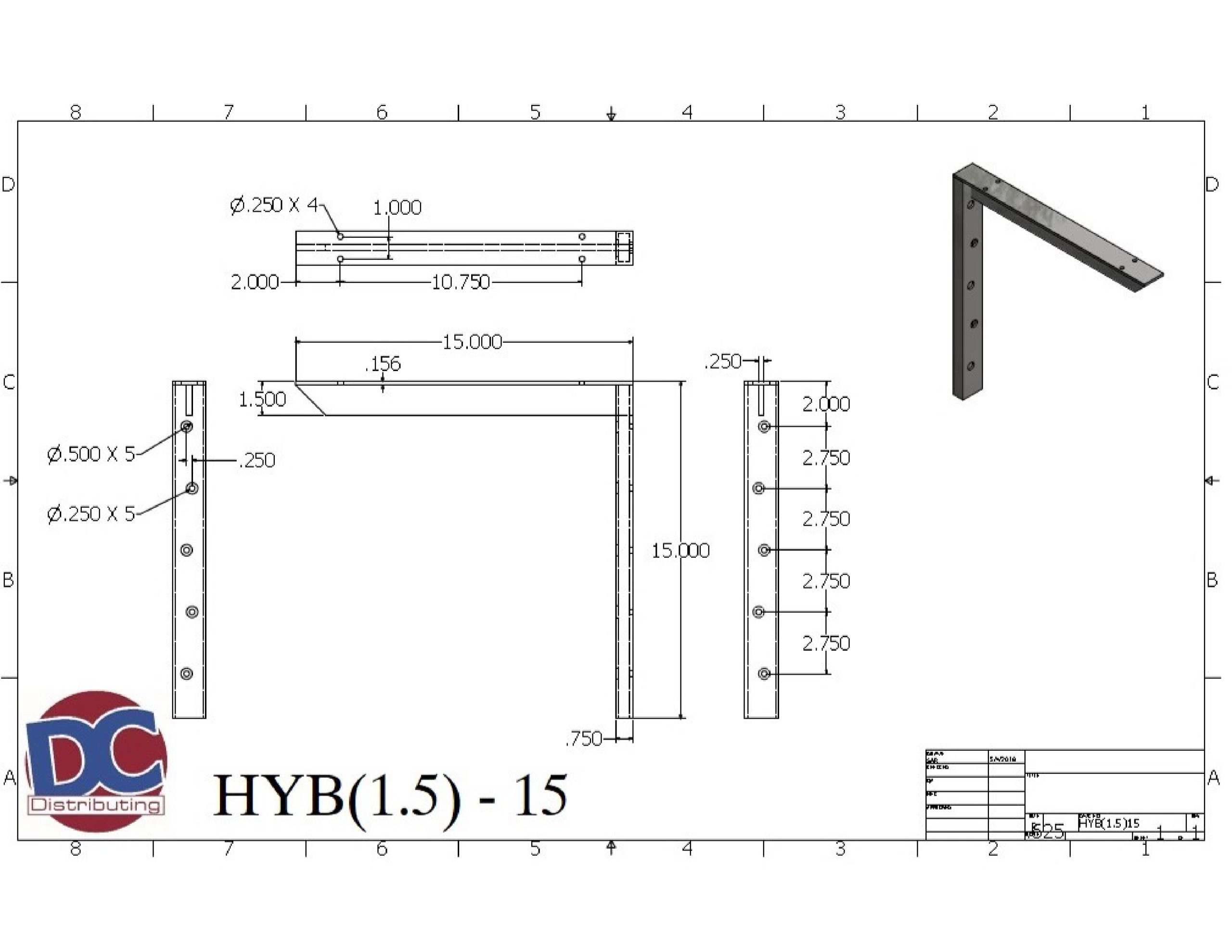

Hybrid Brackets

Finishes available in: Black and White
1.5 Sizes available:

12″ 15″ 18″
21″ 24″

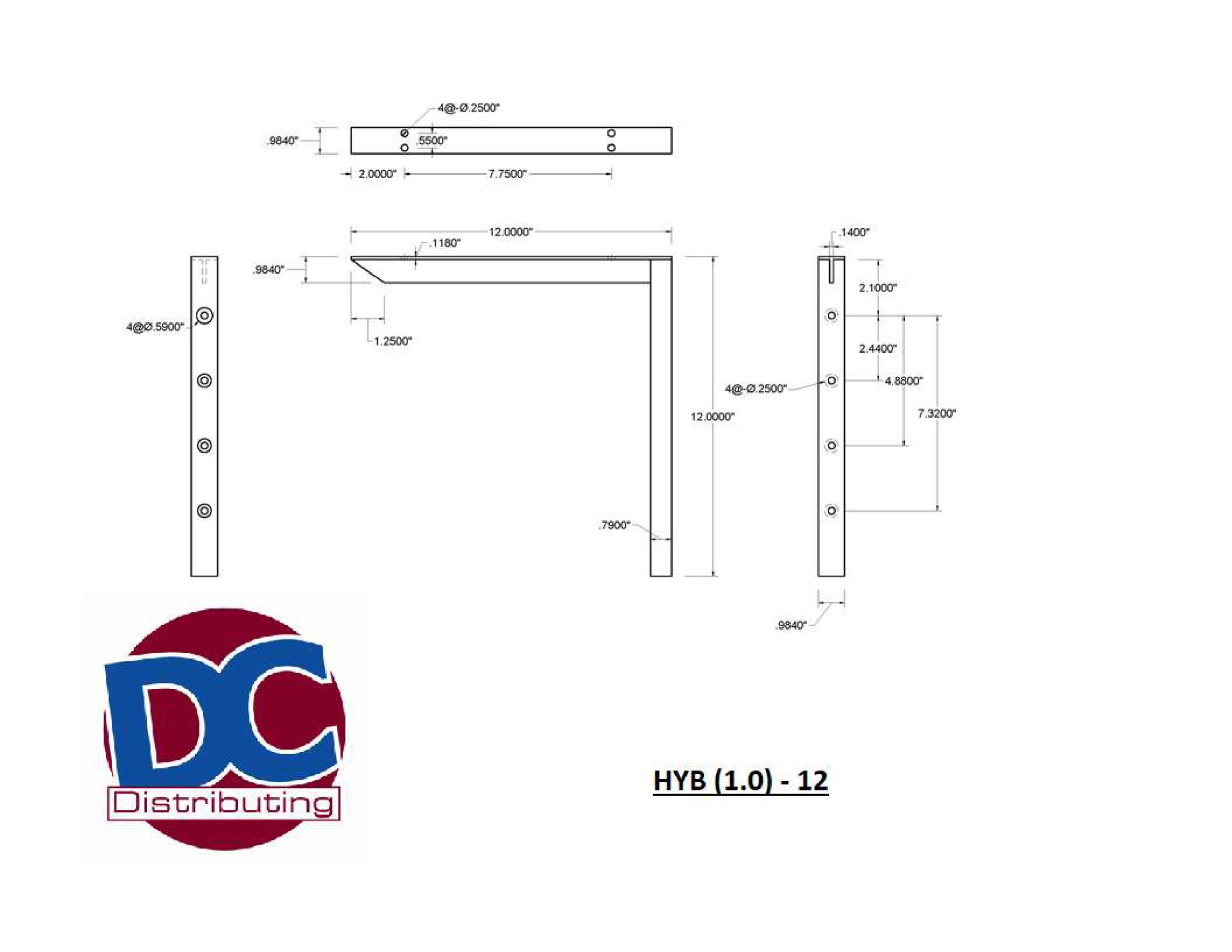

1.0 Sizes available:

12″ (Black and White only) 18″ (Black and White only) 24″ (Black and White only)

Click a size to see schematics.
Please note: These brackets must be purchased in pairs.

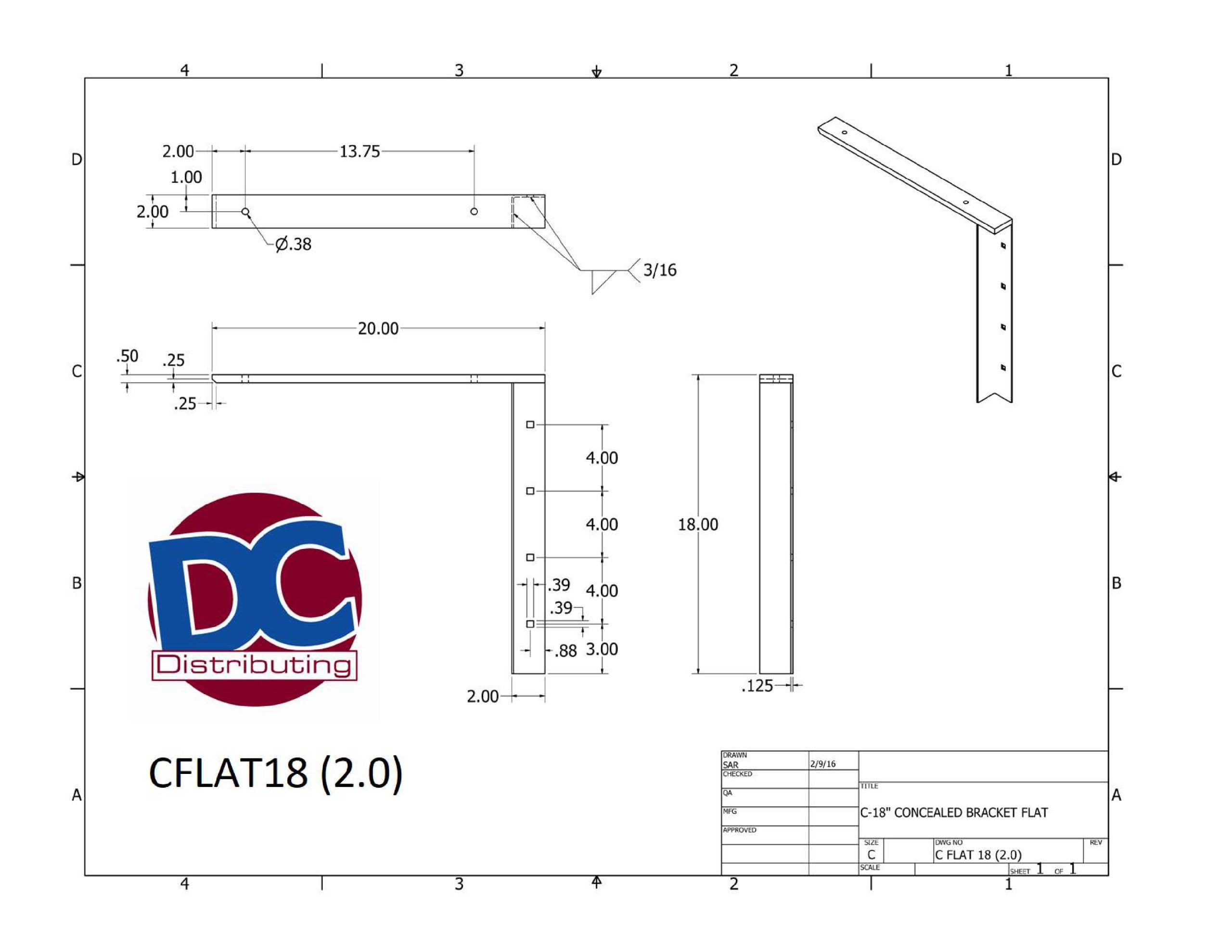

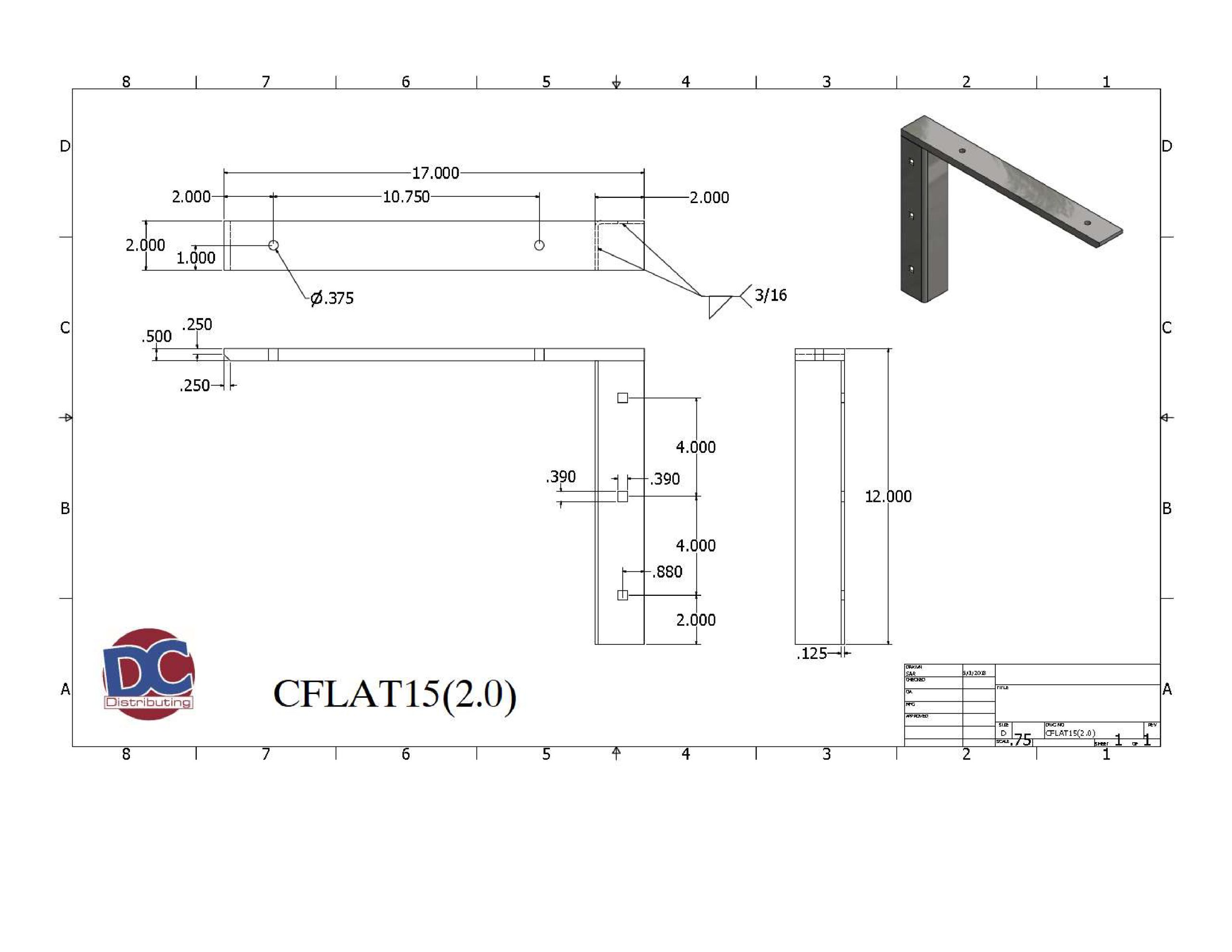

Concealed Flat Brackets

Finishes available in: Black and White
2.0 Sizes available:

9″ 12″ 15″
18″ 21″ 24″

1.0 Sizes available:

9″ 12″ 18″

Click a size to see schematics.
Please note: These brackets must be purchased in pairs.

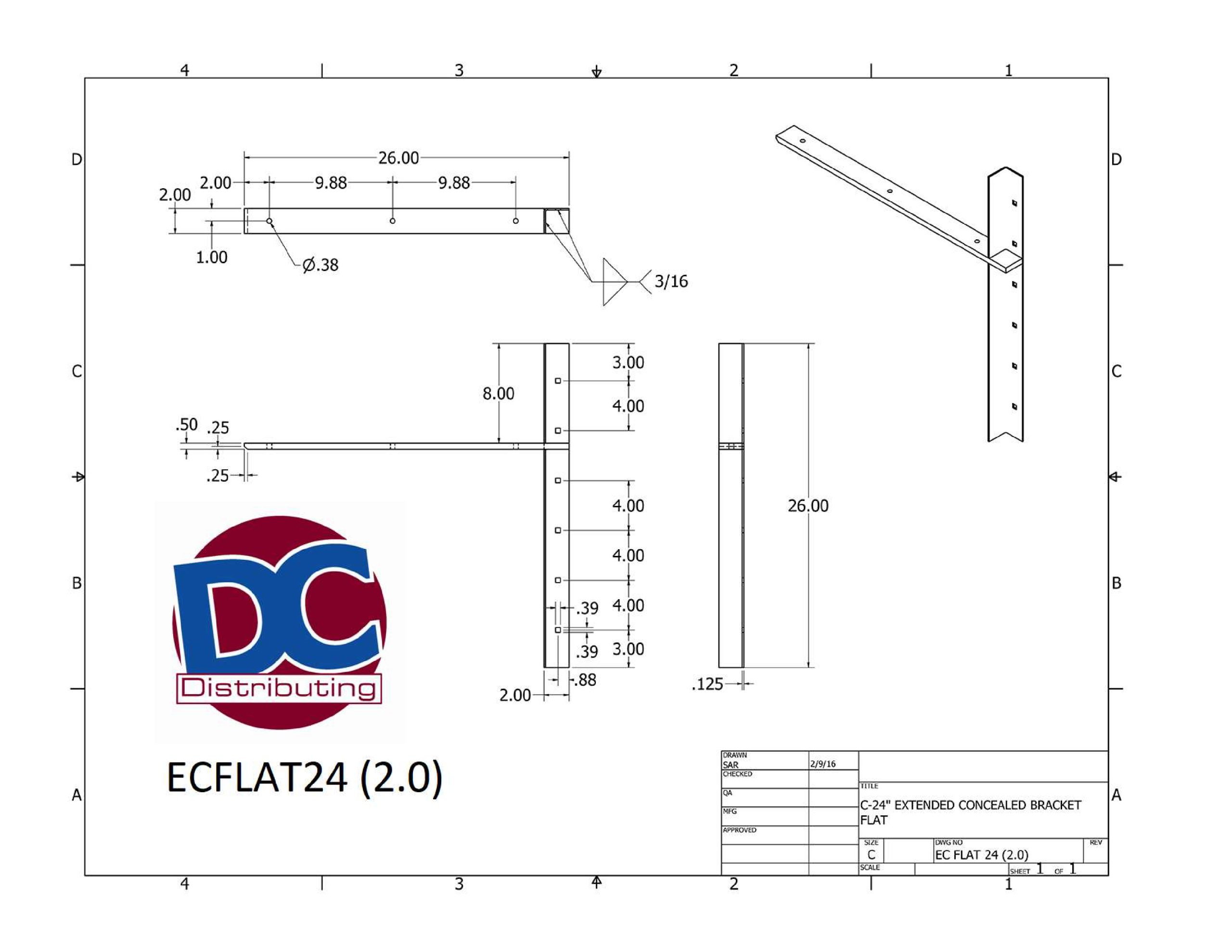

Extended Concealed Flat Brackets

Finishes available in: Black and White
2.0 Sizes available:

9″ 12″ 18″
24″

1.0 Sizes available:

9″ 12″ 18″

Click a size to see schematics.
Please note: These brackets must be purchased in pairs.

Floating and Hidden Shelf Brackets

Floating Brackets:

6″ 9″ 12″

Please note: These brackets must be purchased in pairs.

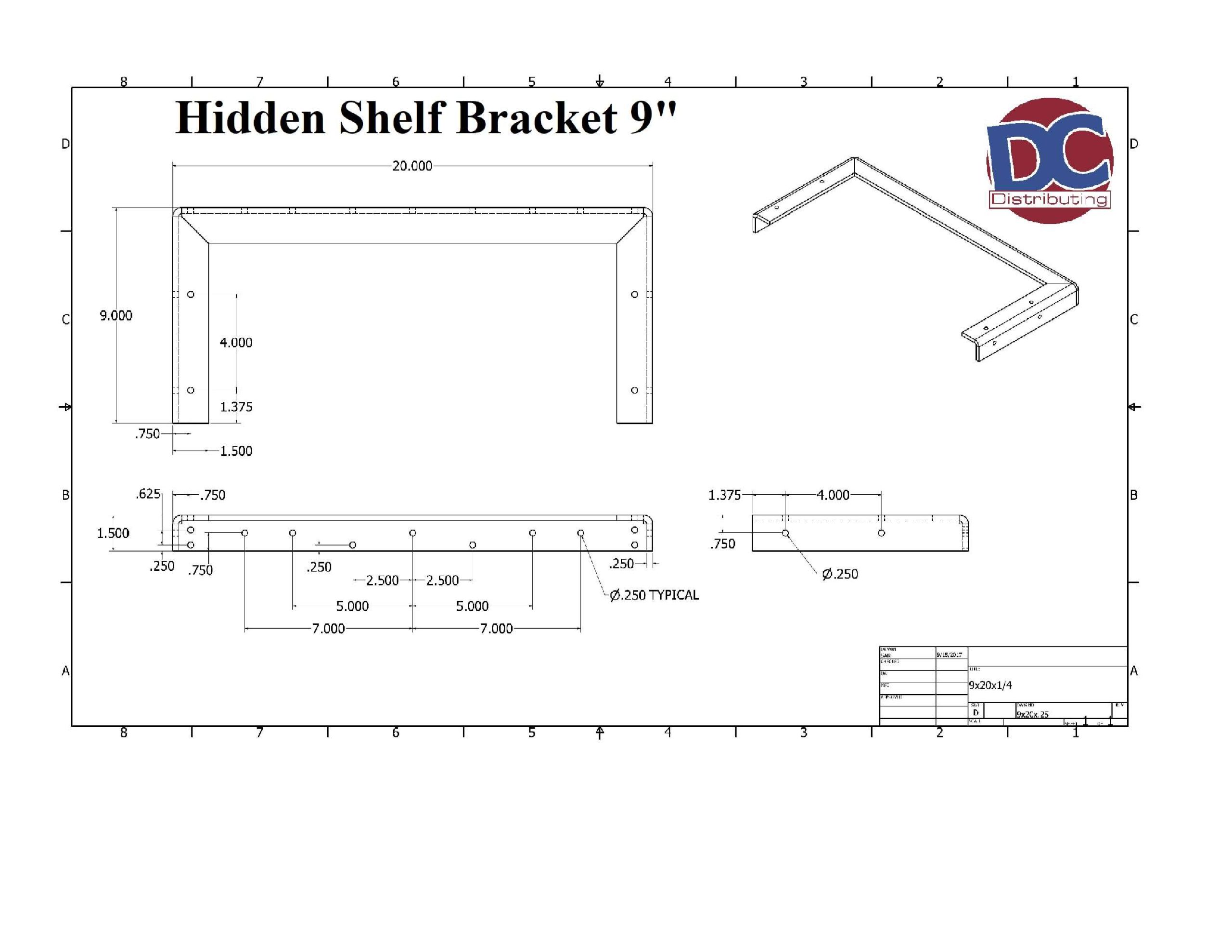

Hidden Shelf Brackets:

6″ 9″ 12″

One bracket per box.



Click a size to see schematics.

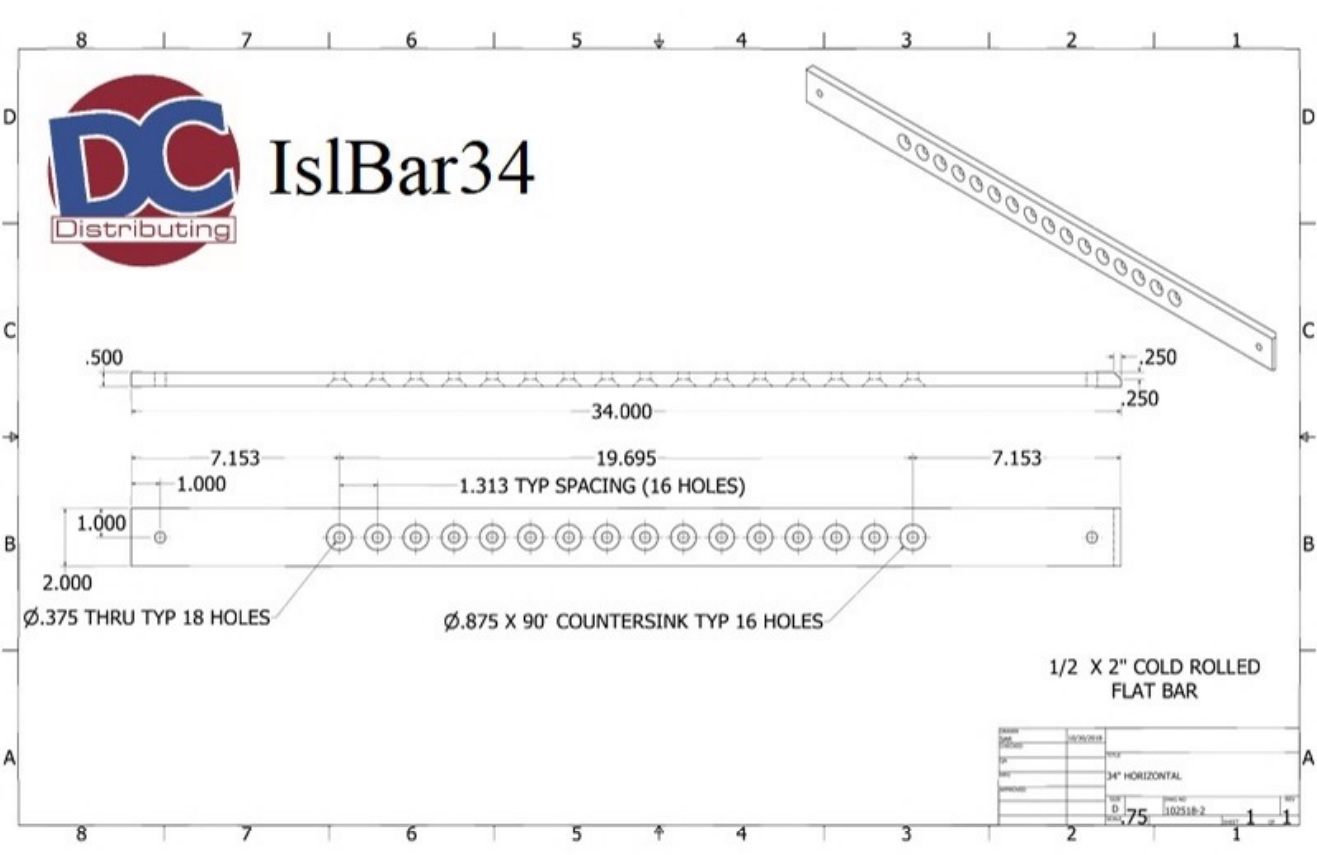

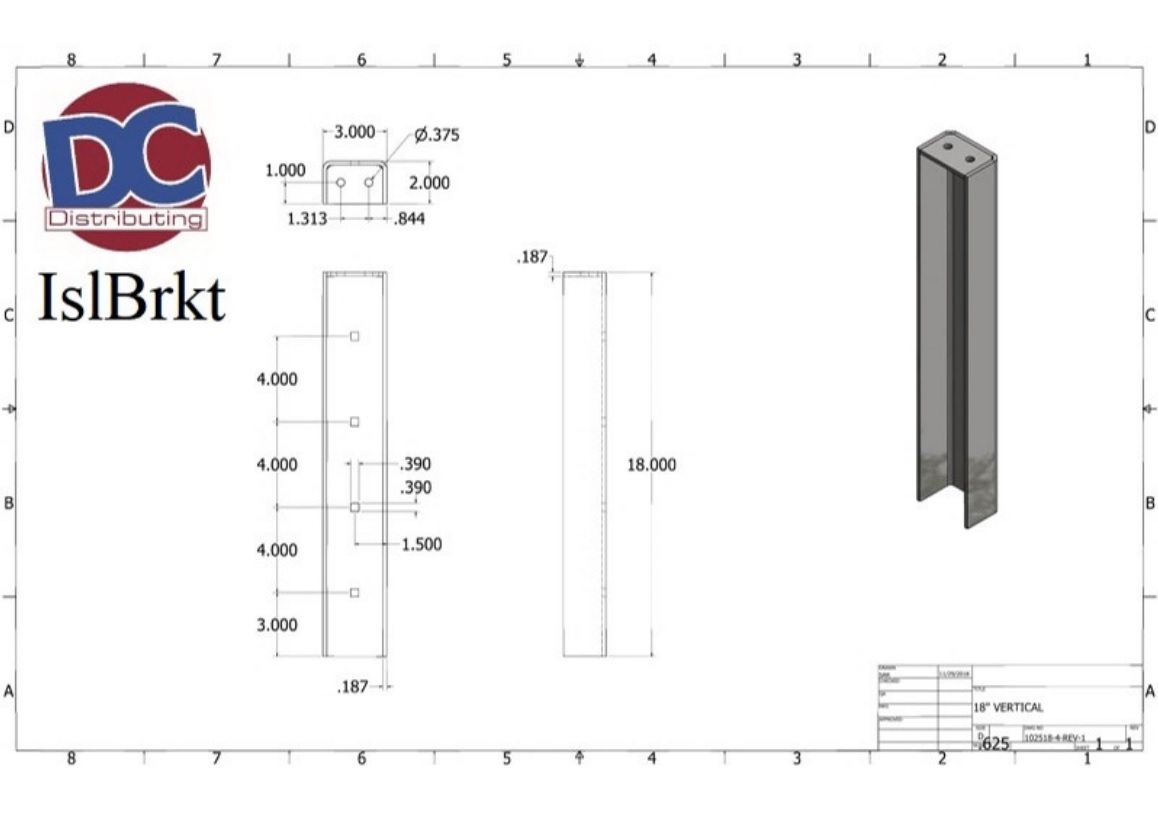

Island bar brackets

One size mounting bracket with hardware included
3 Bar lengths available 15″, 34″, and 40″
Bars are 1/2″ thick steel and 2″ wide
Bars have multiple countersunk mounting holes for easy customization
Load limit range of 350lbs. to 3,250lbs.

Island Bar 15 Island Bar 34 Island Bar 40 Island Bracket

Click a size to see schematics.
